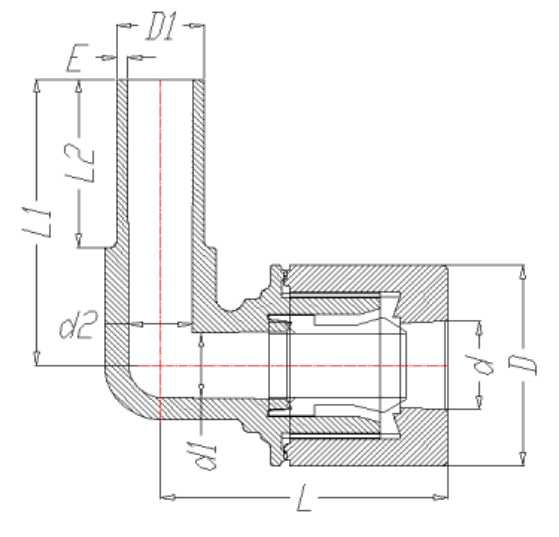

| 大小 | 尺寸毫米(英寸) | ||||||||
| D | d | l | d1 | d2 | L1 | L2 | D1 | E | |
| CLQ1ET-1/4“XT1/2” | 17 (0.67) | 6.4 (0.25) | 32 (1.26) | 3.9 (0.15) | 9.5 (0.37) | 36 (1.42) | 25 (0.98) | 12.7 (0.5) | 1.6 (0.06) |
| CLQ1ET-1/4“XT1/4” | 17 (0.67) | 6.4 (0.25) | 29 (1.14) | 3.9 (0.15) | 4.1 (0.16) | 26日(1.02) | 17 (0.67) | 6.4 (0.25) | 1.1 (0.04) |
| CLQ1ET-3/8“XT3/8” | 23日(0.91) | 9.7 (0.38) | 36 (1.42) | 6.5 (0.26) | 6.3 (0.25) | 36 (1.42) | 21日(0.83) | 9.5 (0.37) | 1.6 (0.06) |
| CLQ1ET-1/2“XT1/2” | 30 (1.18) | 12.7 (0.5) | 42 (1.65) | 9.6 (0.38) | 9.5 (0.37) | 43 (1.69) | 25 (0.98) | 12.7 (0.5) | 1.6 (0.06) |
| CLQ1ET-3/4“处” | 40.6 (1.6) | 19日(0.75) | 60 (2.36) | 15.8 (0.62) | 22.2 (0.87) | 61 (2.4) | 38 (1.5) | 25.4 (1) | 1.6 (0.06) |
| CLQ1ET-3/4“XT3/4” | 40.6 (1.6) | 19日(0.75) | 56 (2.2) | 15.8 (0.62) | 15.8 (0.62) | 54 (2.13) | 31 (1.22) | 19日(0.75) | 1.6 (0.06) |
| CLQ1ET-1“处” | 49 (1.93) | 25.4 (1) | 66.5 (2.62) | 22.2 (0.87) | 22.2 (0.87) | 66.5 (2.62) | 38 (1.5) | 25.4 (1) | 1.6 (0.06) |
